Washington Crossing Bridge
NBI Information
Location
State: Pennsylvania
County: Bucks County
Feature Carried: PA-2070
Feature Crossed: Delaware River
Latitude, Longitude: 40.2952,-74.8683
Toll: On free road
Maintenance Responsibility: Local Toll Authority
Structure Open, Posted, or Closed to Traffic: Posted for load (may include other restrictions such as temporary bridges which are load posted)
History
Year Built: 1904
Historical Significance: Bridge is on the National Register of Historic Places.
Year Reconstructed: 2010
Picture Date: July 16, 2022
Geometry
Lanes on Structure: 2
Lanes under Structure: 0
Skew: 0 degrees
Number of Main Spans: 6
Main Structure Type: Truss - Thru
Main Structure Material: Steel
Number of Approach Spans: 0
Approach Structure Type: None
Approach Structure Material: None
Condition
Inspection Date: April 2022
Deck Condition: Satisfactory
Superstructure Condition: Fair
Substructure Condition: Satisfactory
Channel Condition: Good
Culvert: Not Applicable
NBI Year: 2023
Bridge Information
The Washington Crossing Bridge (built in 1904) is at the approximate location that Washington’s troops crossed the Delaware on Christmas Night in 1776. It’s too bad they didn’t build the bridge a few decades earlier!
The first bridge at this location was an timber bridge, and it is was built around 1831. Unfortunately, this bridge was swept away by a flood on January 8, 1841. A replacement bridge was built, and it operated until October 10, 1903, when it was also carried away by a flood. The current bridge was built in 1904 as a private toll bridge. On April 25, 1922, the bridge was jointly purchase by New Jersey and Pennsylvania, and the toll was removed.

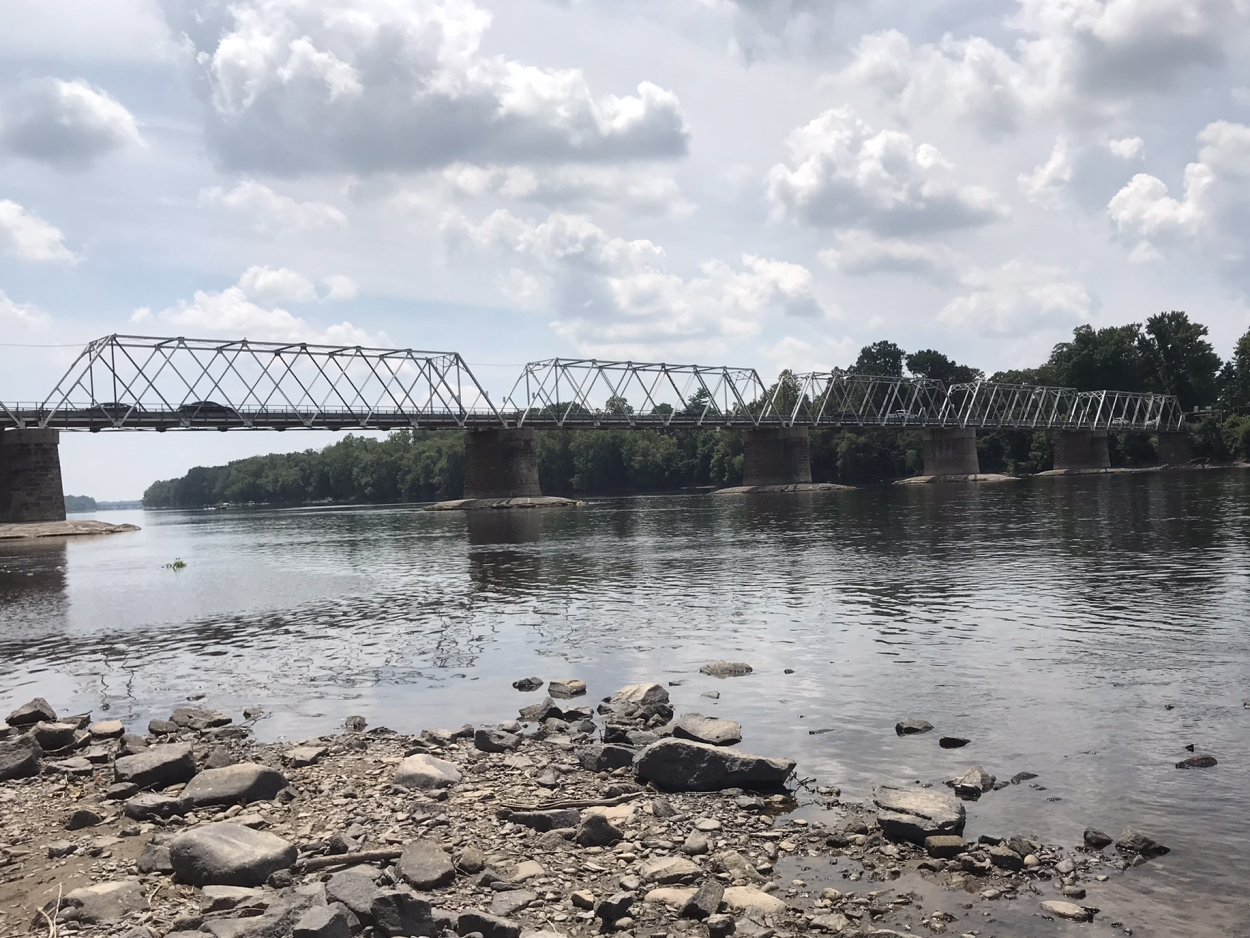

This bridge is a rare, long, multi-span, example of its truss type. It is a six-span, eight panel, rivet-connected, double-intersection Warren Through Truss Bridge. The rubble stone-faced masonry substructure units are from the original bridge. It has a very narrow deck, but still allows cars to travel in both directions. The pedestrian sidewalk was added in 1926.
The flood of August 19, 1955 did considerable damage to the bridge. Floating debris smashed against the bridge, and damaged all 6 spans. The damaged members were replaced, and the bridge reopened on November 19, 1955.
In the fall of 1994, the bridge underwent an extensive structural rehabilitation. Many of the truss members were replaced with new galvanized members. The floor beams and open steel grid deck was replaced in the first three bays of each end span. The remaining steel was blast cleaned, metalized, and painted. A new wooden sidewalk was installed, and renovations were made to both bridge approaches.

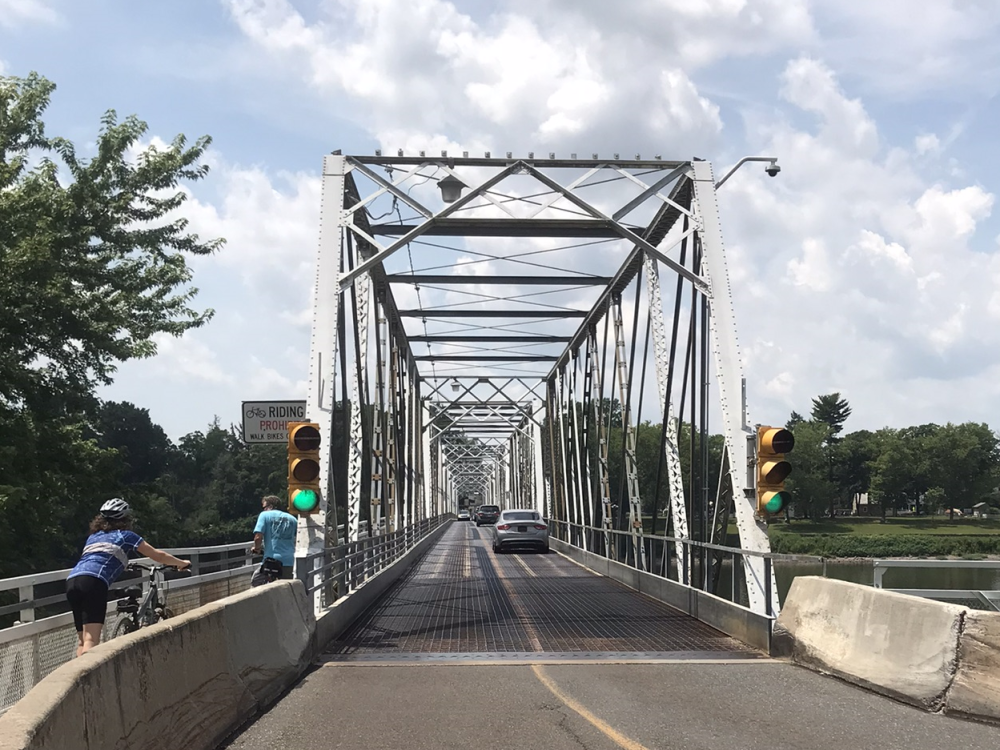

This bridge has been classified as functionally obsolete. It was a 15 mph speed limit, a 3 ton weight limit and a vertical clearance in 10 feet. The width between the wheel guards is 15 feet, resulting in two 7.5 foot lanes. This is 4.5 feet less than the standard 12 foot lane on an interstate highway. Due to these limitation, the Delaware River Joint Toll Bridge Commission has begun discussing a plan to replace the bridge. The have announced that in June of 2024, they plan to hire a consulting firm to perform an environmental review and identify and study obstacles to building a new bridge. The permitting, acquisition and design of the new bridge will likely be in 2027, with construction occurring a few years after that.
