Roaring Run Bridge

(Bowstring Truss Bridge)

NBI Information

Location

State: Virginia

County/City: Montgomery County

Feature Carried: Pedestrian Path

Feature Crossed: Drainage Ditch

Latitude, Longitude: 37.2392, -80.2244

Toll: N/A

Maintenance Responsibility: N/A

Structure Open, Posted, or Closed to Traffic: Open to Pedestrians

History

Year Built: 1878

Historical Significance: N/A

Year Reconstructed: 1977

Picture Date: December 12, 2020

Geometry

Lanes on Structure: 1

Lanes under Structure: 0

Skew: 0 degrees

Number of Main Spans: 1

Main Structure Type: Thru Truss

Main Structure Material: Steel

Number of Approach Spans: 0

Approach Structure Type: None

Approach Structure Material: None

Condition

Bridge is not on the National Bridge Inventory.

Bridge Information

The Roaring Run Bridge, also called the Bowstring Truss Bridge, is the oldest metal bridge in Virginia. This bridge was originally built over the Stony Fork River in 1878. It was relocated to Roaring Run in 1930, then to its current location in 1977. It is currently in the Ironto Rest Area off of I-81 in Virginia.

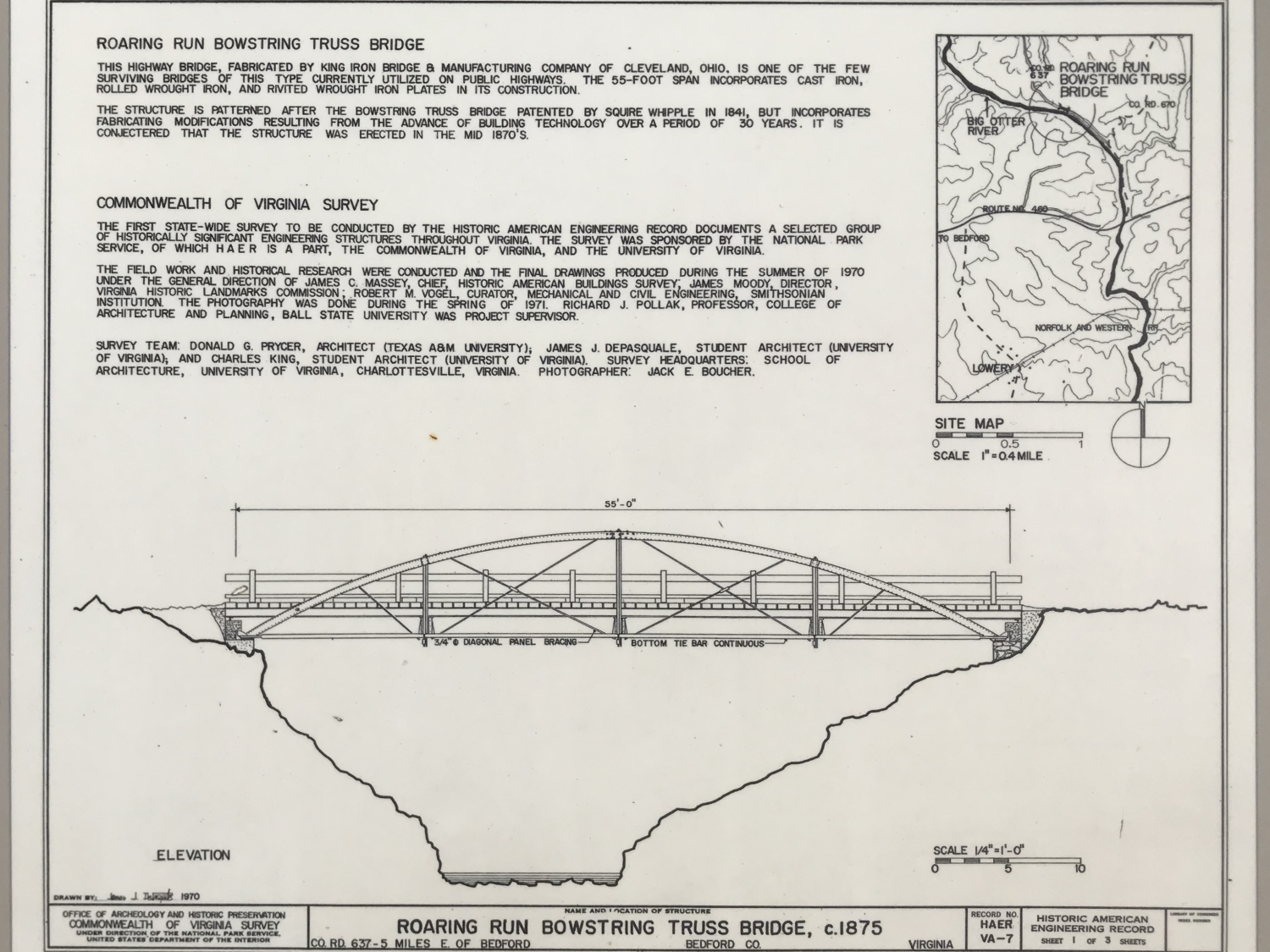

The bridge is a single span, four panel, tubular arch pony truss. It is 55 feet long, 6.5 feet high and 12 feet wide, with a roadway width of 9.5 feet. The main structural components, including the arches, floorbeams, tie rods, tie bars and suspenders, are all manufactured from wrought iron. The bearing plates and connectors are manufactured from cast iron. Most of the main structural components are original. However, the wooden deck and concrete abutments were installed when the bridge was moved to its final location in 1977.
