NBI Information

Location

State: New York

County: Essex County

Feature Carried: Bartlett Road

Feature Crossed: Clifford Brook

Latitude, Longitude: 44.2752,-73.8164

Toll: On free road

Maintenance Responsibility: County Highway Agency

Structure Open, Posted, or Closed to Traffic: Open, no restriction

History

Year Built: 2015

Historical Significance: Bridge is not eligible for the National Register of Historic Places.

Year Reconstructed: None

Picture Date: August 20, 2023

Geometry

Lanes on Structure: 2

Lanes under Structure: 0

Skew: 0 degrees

Number of Main Spans: 1

Main Structure Type: Truss - Thru

Main Structure Material: Steel

Number of Approach Spans: 0

Approach Structure Type: None

Approach Structure Material: None

Condition

Inspection Date: May 2021

Deck Condition: Very Good

Superstructure Condition: Excellent

Substructure Condition: Excellent

Channel Condition: Very Good

Culvert: Not Applicable

NBI Year: 2023

Bridge Information

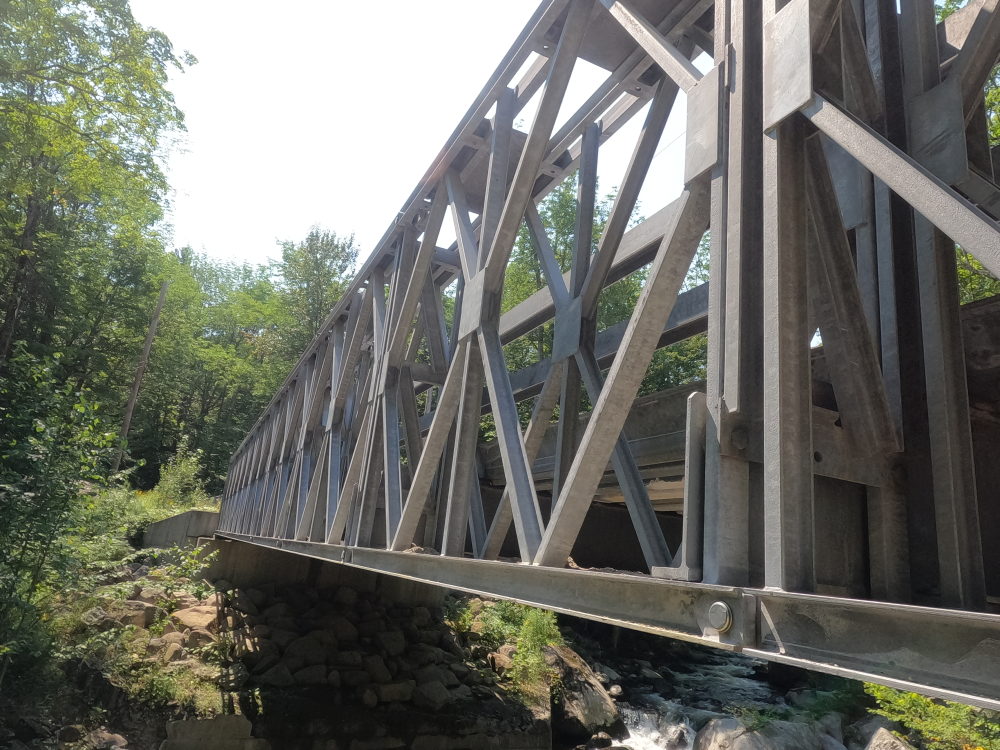

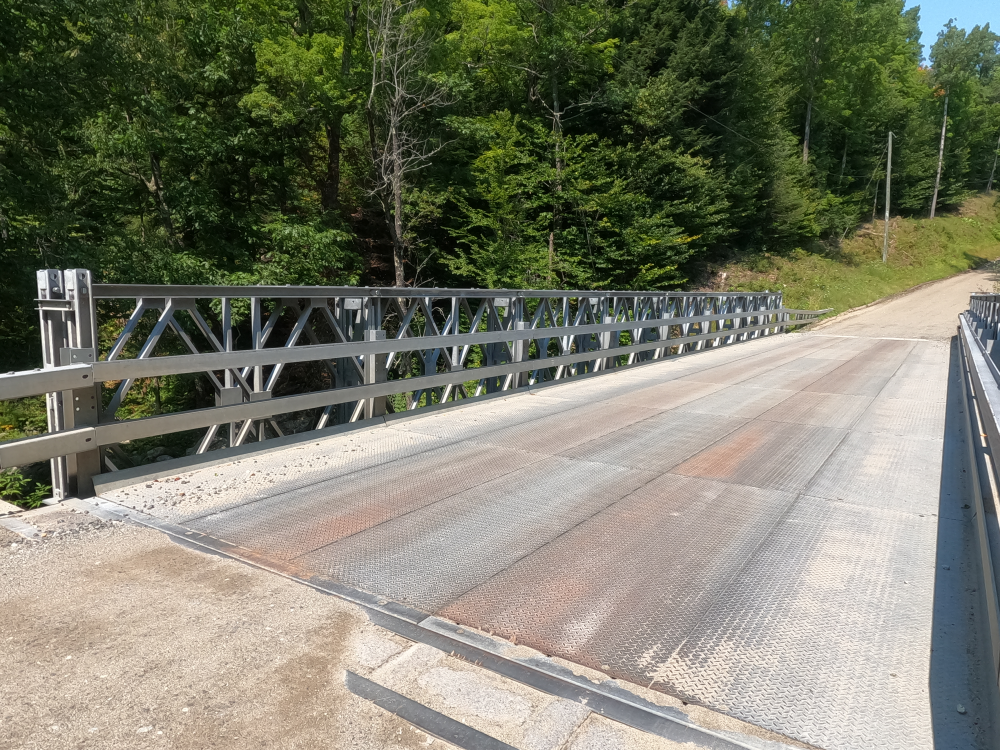

The National Bridge inventory lists the Bartlett Road Bridge as being constructed in 2015. However, the 2015 contract only included site and substructure work. It appears that the abutments were replaced, and a Bailey Bridge was moved onto the site. Unfortunately, there is no public record of this, and it is not clear where the bridge was moved from. Note that the bridge that was there prior to the 2015 construction was not a truss bridge.

A Bailey Bridge is a type of prefabricated truss bridge that was developed by the British Military during the Second World War. These bridges were commonly used because they required no special tools or equipment to assemble, and the elements were light and small enough to be carried in trucks and moved by hand. The bridges were strong enough to carry tanks, and they were used extensively by British, Canadian, and American military engineering units. After the war, these bridges continued to be used to provide temporary crossings for pedestrian and vehicle traffic.

References

  • Essex County NY: https://www.co.essex.ny.us/downloads/2015%20Bartlett%20Rd%20Bridge%20Site%20and%20Substructure%20Bid_addendum1.pdf
